BlueLine coilover suspension suitable for BMW 3 Series Sedan and Touring (F30/31), 316, 318, 320, 328, 330 from model year 2012-, only suitable for vehicles without electronic damper control

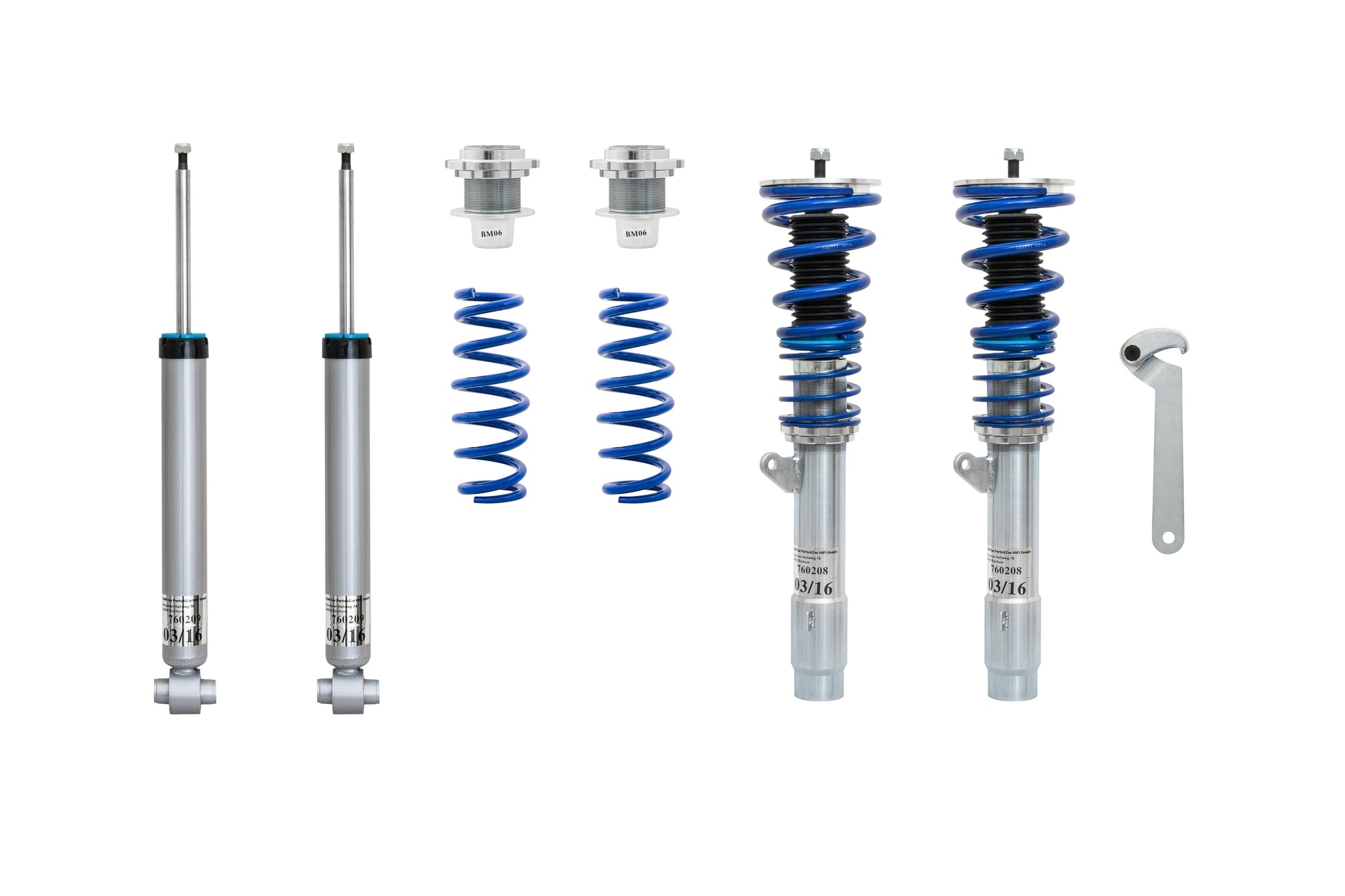

• BlueLine coilovers are high-quality, vehicle-specific suspension components for lowering the front and rear axles by 35 to 65 mm. The inserted adjustment range allows the body height to be individually lowered, while the spring preload is maintained over the entire adjustment range. The height is adjusted once installed. The coilovers have a particularly high load absorption. Vehicle-specific design variant: front threaded / HA spring.

  • Front/rear adjustment range 35-65 mm
  • Maximum loads for front axle 1090 kg / rear axle 1230 kg
  • §19.3 Parties' certificate

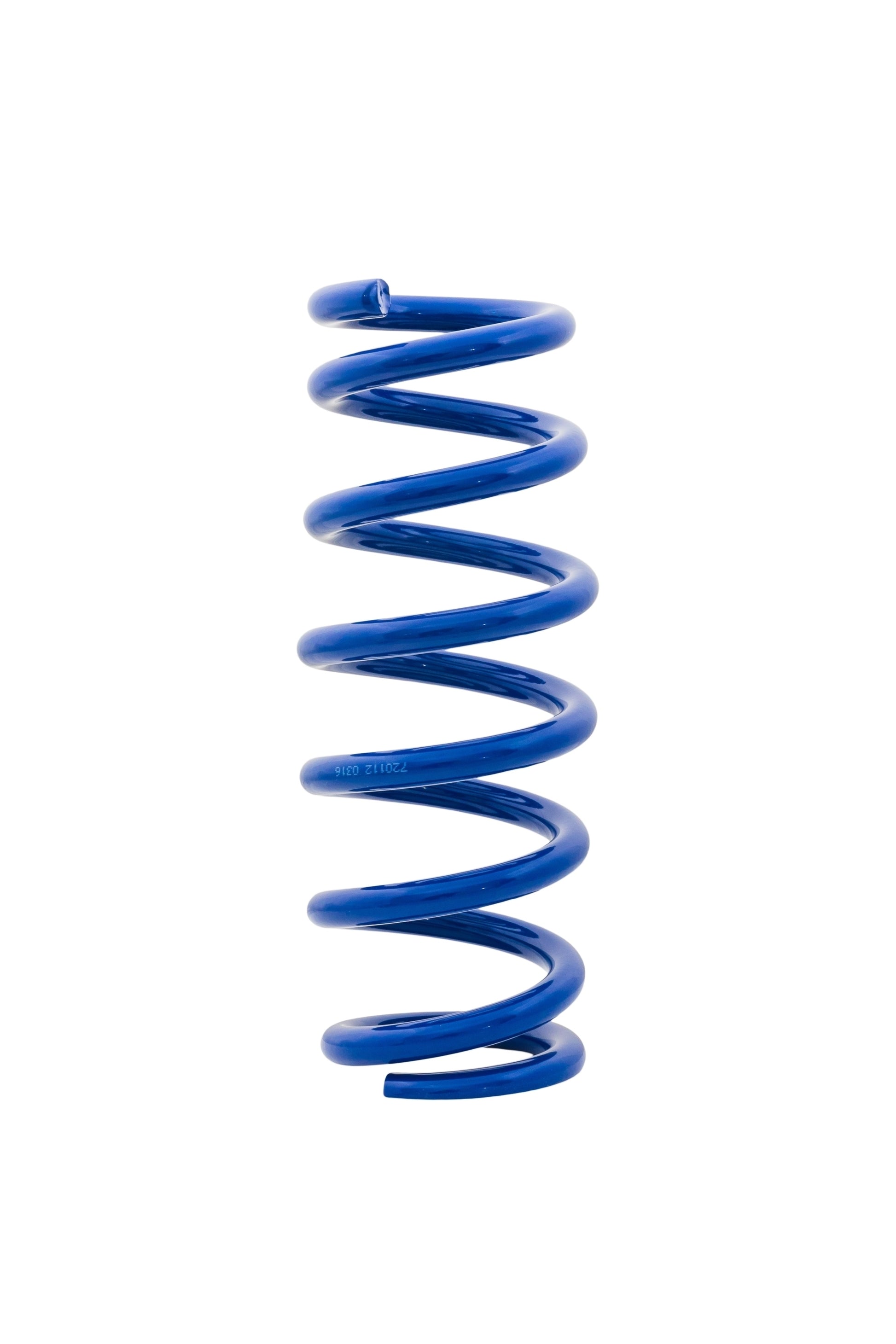

  • Cold-wound springs powder coated EPS
  • galvanized shock absorbers










  Compatibility




  Manufacturer	Vehicle	Year of construction	HSN/TSN
  BMW	Series 3 316d 1995 cc, 85 KW, 116 HP	03.2012 - 10.2018	0005|BII<>0005|BKN
  BMW	3 Series 316i 1596 ccm, 73 KW, 100 HP	09.1990 - 09.1993	0005|508
  BMW	3 Series 316i 1596 cc, 75 KW, 102 HP	07.1993 - 02.1998	0005|507<>0005|537<>0005|573
  BMW	3 Series 316i 1596 cc, 75 KW, 102 HP	09.1990 - 09.1993	0005|507
  BMW	3 Series 316i 1598 cc, 100 KW, 136 HP	10.2012 - 08.2016	0005|BKH
  BMW	Series 3 318d 1995 ccm, 100 KW, 136 HP	05.2011 - 06.2015	0005|BIR<>0005|BKO
  BMW	Series 3 318d 1995 cc, 105 KW, 143 HP	05.2011 - 06.2015	0005|BIJ<>0005|BKP
  BMW	Series 3 318d 1995 ccm, 110 KW, 150 HP	10.2014 - 11.2018	0005|CDV
  BMW	3 Series 318i 1499 ccm, 100 KW, 136 HP	03.2015 - 11.2018	0005|BZQ
  BMW	3 Series 318i 1796 cc, 83 KW, 113 HP	12.1990 - 10.1993	0005|504
  BMW	3 Series 318i 1796 ccm, 85 KW, 115 HP	10.1993 - 02.1998	0005|503<>0005|574
  BMW	Series 3 318is 1796 ccm, 103 KW, 140 hp	03.1993 - 02.1998	0005|535
  BMW	Series 3 318is 1895 cc, 103 KW, 140 HP	09.1995 - 02.1998	0005|576
  BMW	Serie 3 318tds 1665 ccm, 66 KW, 90 HP	01.1995 - 02.1998	0005|547
  BMW	Series 3 320d 1995 ccm, 120 KW, 163 HP	04.2011 - 10.2018	0005|BHJ<>0005|BKR<>0005|BK...
  BMW	Series 3 320d 1995 cc, 135 KW, 184 HP	03.2011 - 03.2016	0005|BHK<>0005|BKQ
  BMW	Series 3 320d 1995 ccm, 140 KW, 190 HP	10.2014 - 11.2018	0005|Valentine
  BMW	Series 3 320d 1995 ccm, 147 KW, 200 HP	11.2011 - 06.2015	0005|BIL<>0005|UCS
  BMW	3 Series 320i 1990 ccm, 110 KW, 150 HP	01.1991 - 02.1998	0005|505<>0005|550
  BMW	Series 3 320i 1997 cc, 135 KW, 184 HP	03.2012 - 10.2018	0005|BIK<>0005|BKU
  BMW	Series 3 320i 1997 cc, 135 KW, 184 HP	04.2011 - 11.2018
  BMW	Series 3 320i 1998 cc, 135 KW, 184 HP	09.2014 - 11.2018	0005|BK
  BMW	3 Series 320i Efficient Dynamics 1598 ccm, 125 KW, 170 HP	04.2012 - 06.2016	0005|BMO<>0005|CDR
  BMW	3 Series 323i 2.5 2494 cc, 125 KW, 170 HP	03.1995 - 02.1998	0005|560
  BMW	Series 3 325d 1995 cc, 155 KW, 211 HP	07.2012 - 02.2016	0005|BOU
  BMW	Series 3 325d 1995 ccm, 160 KW, 218 HP	07.2012 - 02.2016	0005|ROBOT
  BMW	Series 3 325d 1995 cc, 165 KW, 224 HP	04.2015 - 11.2018	0005|English translation
  BMW	3 Series 325i 2494 ccm, 141 KW, 192 HP	09.1990 - 09.1995	0005|506
  BMW	Serie 3 325td 2497 ccm, 85 KW, 115 HP	09.1991 - 02.1998	0005|517<>0005|578
  BMW	Serie 3 325tds 2497 ccm, 105 KW, 143 HP	05.1993 - 02.1998	0005|536<>0005|579
  BMW	Series 3 328i 1997 cc, 180 KW, 245 HP	04.2011 - 10.2018	0005|BHH<>0005|BKV
  BMW	3 Series 328i 2793 cc, 142 KW, 193 HP	01.1995 - 02.1998	0005|556
  BMW	Series 3 330d 2993 ccm, 190 KW, 258 HP	01.2012 - 11.2018	0005|BKI
  BMW	Series 3 330d 2993 cc, 210 KW, 286 HP	01.2012 - 11.2018	0005|BOX
  BMW	Series 3 330e 1998 ccm, 135 KW, 184 HP	11.2015 - 11.2018	0005|CDU<>0005|CIM
  BMW	Series 3 330e 1998 ccm, 185 KW, 252 HP	02.2015 - 11.2018
  BMW	3 Series 330i 1998 ccm, 185 KW, 252 HP	07.2015 - 10.2018	0005|CD
  BMW	3 Series 335i 2979 cc, 225 KW, 306 HP	04.2011 - 07.2015	0005|BWI<>0005|BKW
  BMW	3 Series 335i 2979 ccm, 240 KW, 326 HP	04.2011 - 07.2013	0005|BIM
  BMW	3 Series 335i 2979 ccm, 250 KW, 340 HP	07.2013 - 11.2018	0005|CRPD
  BMW	3 Series 340i 2998 cc, 240 KW, 326 HP	07.2015 - 11.2018	0005|CDT
  BMW	3 Series 340i 2998 cc, 265 KW, 360 HP	10.2014 - 11.2018	0005|CFD
  BMW	Series 3 ActiveHybrid 2979 cc, 225 KW, 306 HP	11.2011 - 05.2015	0005|BKG<>0005|BMS
  BMW	Series 3 ActiveHybrid 2979 cc, 250 KW, 340 HP	11.2011 - 05.2015	0005|BKG
  BMW	3 Series Cabriolet 318i 1796 ccm, 103 KW, 140 HP	03.1993 - 12.1995
  BMW	3 Series Cabriolet 318i 1796 cc, 85 KW, 115 HP	01.1994 - 04.1999	0005|495<>0005|540<>0005|581
  BMW	3 Series Cabriolet 320i 1990 cc, 110 KW, 150 HP	12.1993 - 11.1999	0005|530<>0005|552
  BMW	3 Series Cabriolet 323i 2494 ccm, 125 KW, 170 HP	06.1995 - 04.1999	0005|563
  BMW	3 Series Cabriolet 325i 2494 cc, 141 KW, 192 HP	03.1993 - 12.1995	0005|531
  BMW	3 Series Cabriolet 328i 2793 cc, 142 KW, 193 HP	03.1995 - 04.1999	0005|559
  BMW	3 Series Cabriolet M3 3.0 2990 ccm, 210 KW, 286 HP	01.1994 - 10.1995	7909|303
  BMW	3 Series Cabriolet M3 3.2 3201 ccm, 236 KW, 321 HP	10.1995 - 04.1999	7909|307
  BMW	Series 3 Compact 316g 1596 ccm, 75 KW, 102 HP	03.1994 - 08.2000	0005|541<>0005|621
  BMW	3 Series Compact 316i 1596 ccm, 75 KW, 102 HP	03.1994 - 08.2000	0005|541<>0005|565
  BMW	3 Series Compact 316i 1895 ccm, 77 KW, 105 HP	12.1998 - 08.2000	0005|650
  BMW	Series 3 Compact 318 Ti 1796 ccm, 103 KW, 140 HP	11.1994 - 08.1995	0005|549
  BMW	Series 3 Compact 318 Ti 1895 ccm, 103 KW, 140 HP	07.1995 - 08.2000	0005|566
  BMW	Serie 3 Compact 318tds 1665 ccm, 66 KW, 90 HP	01.1995 - 08.2000	0005|548
  BMW	Series 3 Compact 323 TI 2494 ccm, 120 KW, 163 HP	01.1999 - 08.2000	0005|618
  BMW	Series 3 Compact 323 Ti 2494 ccm, 125 KW, 170 HP	09.1997 - 08.2000	0005|612
  BMW	3 Series Coupé 316i 1596 cc, 75 KW, 102 HP	09.1993 - 04.1999	0005|538<>0005|580
  BMW	3 Series Coupé 318is 1796 cc, 103 KW, 140 HP	03.1992 - 10.1995	0005|518
  BMW	3 Series Coupé 318is 1895 ccm, 103 KW, 140 HP	09.1995 - 04.1999	0005|582
  BMW	3 Series Coupé 320i 1991 cc, 110 KW, 150 HP	03.1992 - 04.1999	0005|519<>0005|551
  BMW	3 Series Coupé 323i 2494 cc, 125 KW, 170 HP	03.1995 - 04.1999	0005|562
  BMW	3 Series Coupé 325i 2494 cc, 141 KW, 192 HP	03.1992 - 04.1999	0005|520
  BMW	3 Series Coupé 328i 2793 cc, 142 KW, 193 HP	01.1995 - 04.1999	0005|558
  BMW	3 Series Coupe M3 3.0 2990 cc, 210 KW, 286 HP	10.1992 - 01.1995	Phone 0575|308
  BMW	3 Series Coupe M3 3.0 2990 cc, 217 KW, 295 HP	01.1995 - 10.1995	7909|305
  BMW	3 Series Coupe M3 3.2 3201 cc, 236 KW, 321 HP	10.1995 - 04.1999	7909|306
  BMW	Series 3 M3 2979 cc, 317 KW, 431 HP	03.2014 - 11.2018	7909|ABG
  BMW	3 Series M3 3.0 2990 cc, 210 KW, 286 HP	08.1994 - 09.1995	7909|300
  BMW	3 Series M3 3.2 3201 cc, 236 KW, 321 HP	09.1995 - 02.1998	7909|308
  BMW	Series 3 M3 CS 2979 cc, 338 KW, 460 HP	01.2018 - 11.2018	7909|ABX
  BMW	Series 3 M3 Competition 2979 cc, 331 KW, 450 HP	03.2016 - 11.2018	7909|ABR
  BMW	Series 3 Touring 316d 1995 ccm, 85 KW, 116 HP	02.2012 - 12.2015	0005|BMM<>0005|BPR
  BMW	3 Series Touring 316i 1596 cc, 75 KW, 102 HP	01.1996 - 10.1999	0005|617
  BMW	3 Series Touring 316i 1598 ccm, 100 KW, 136 HP	03.2012 - 08.2016	0005|BOY
  BMW	Series 3 Touring 318d 1995 cc, 100 KW, 136 HP	07.2011 - 12.2019	0005|BMZ
  BMW	Series 3 Touring 318d 1995 ccm, 105 KW, 143 HP	07.2011 - 06.2015	0005|BMN
  BMW	3 Series Touring 318d 1995 ccm, 110 KW, 150 HP	09.2014 - 12.2019	0005|CDI
  BMW	3 Series Touring 318i 1499 cc, 100 KW, 136 HP	01.2015 - 12.2019	0005|BZR
  BMW	3 Series Touring 318i 1796 ccm, 85 KW, 116 HP	07.1995 - 10.1999	0005|575
  BMW	3 Series Touring 318tds 1665 ccm, 66 KW, 90 HP	01.1995 - 10.1999	0005|554
  BMW	3 Series Touring 320d 1995 ccm, 120 KW, 163 HP	07.2011 - 12.2019	0005|BLD<>0005|BPB<>0005|CDJ
  BMW	3 Series Touring 320d 1995 ccm, 135 KW, 184 HP	07.2011 - 02.2016	0005|BLC
  BMW	Series 3 Touring 320d 1995 ccm, 140 KW, 190 hp	09.2014 - 12.2019	0005|CDK
  BMW	Series 3 Touring 320d 1995 ccm, 147 KW, 200 hp	07.2011 - 02.2016	0005|BLE
  BMW	3 Series Touring 320i 1990 ccm, 110 KW, 150 HP	01.1995 - 04.1999	0005|555
  BMW	3 Series Touring 320i 1997 cc, 120 KW, 163 HP	02.2012 - 06.2015
  BMW	3 Series Touring 320i 1997 ccm, 135 KW, 184 HP	02.2012 - 06.2015	0005|BLACK
  BMW	3 Series Touring 320i 1998 ccm, 135 KW, 184 HP	10.2014 - 12.2019	0005|BLACK
  BMW	3 Series Touring 323i 2494 ccm, 125 KW, 170 HP	09.1995 - 10.1999	0005|577
  BMW	Series 3 Touring 325d 1995 ccm, 155 KW, 211 HP	09.2012 - 02.2016	0005|BPD
  BMW	3 Series Touring 325d 1995 ccm, 160 KW, 218 HP	09.2012 - 02.2016	0005|BPC
  BMW	Series 3 Touring 325d 1995 cc, 165 KW, 224 HP	04.2015 - 12.2019	0005|CHQ
  BMW	3 Series Touring 325tds 2503 ccm, 105 KW, 143 HP	01.1995 - 10.1999	0005|561
  BMW	3 Series Touring 328i 1997 cc, 180 KW, 245 HP	01.2012 - 06.2015	0005|BKZ
  BMW	3 Series Touring 328i 2793 cc, 142 KW, 193 HP	08.1994 - 12.1999	0005|557
  BMW	3 Series Touring 330d 2993 ccm, 190 KW, 258 HP	01.2012 - 12.2019	0005|BLB
  BMW	3 Series Touring 330d 2993 ccm, 210 KW, 286 HP	01.2012 - 12.2019	0005|BPM
  BMW	3 Series Touring 330i 1998 cc, 185 KW, 252 HP	09.2014 - 12.2019	0005|CDG
  BMW	3 Series Touring 335i 2979 cc, 225 KW, 306 HP	07.2012 - 06.2015	0005|BOZ
  BMW	3 Series Touring 335i 2979 cc, 240 KW, 326 HP	07.2012 - 07.2013	0005|Bisphenol A
  BMW	3 Series Touring 335i 2979 ccm, 250 KW, 340 HP	07.2013 - 06.2015	0005|BRM
  BMW	3 Series Touring 340i 2998 ccm, 240 KW, 326 HP	10.2014 - 12.2019	0005|CDH
  BMW	3 Series Touring 340i 2998 ccm, 265 KW, 360 HP	10.2014 - 12.2019	0005|CFF

NOT SURE IF THE ITEM IS COMPATIBLE?

WRITE TO US ON WHATSAPP AND WE WILL VERIFY IT FOR YOU!

Do you have a workshop? Do you need large quantities?
Contact us on whatsapp to have a direct line and discover all our convenient offers!

PRODUCTS AVAILABLE WITH

IMMEDIATE SHIPPING
(we are constantly working to try to always give you prompt delivery of the items, in some and very rare cases you may have to wait a few days)

PAYMENTS:

- MARK (cash on delivery with no additional costs)

- BANK TRANSFER

- PAYMENT BY INSTALLMENTS

- PAYPAL

- COLLECTION BY HAND with cash/card payment

ASSEMBLY and INSTALLATION

- Installation must be carried out at specialized body shops
(we can recommend the nearest affiliated center to you)

- These are not DIY jobs.
- If you have any doubts or questions contact us, we will be happy to help you

Certificates
Product without E/ABE/TUV mark.
These are high quality aftermarket replacement parts.
